تفاصيل المنتج:
شروط الدفع والشحن:
|
| Standard or Nonstandard: | Standard | Type: | top chains |
|---|---|---|---|
| Material: | Plastic |

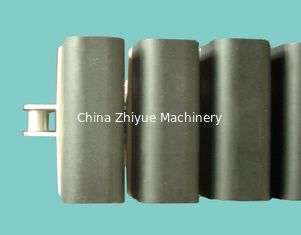

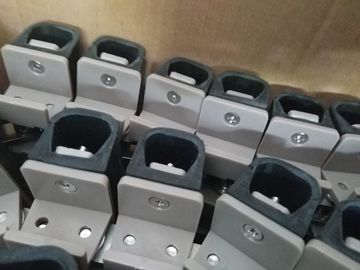

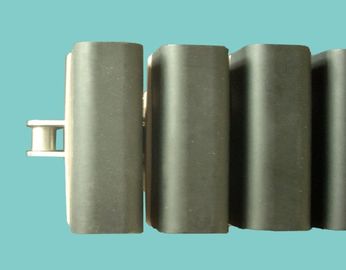

| SS1873D-K325 snap on bottle gripper conveyor chains plate top gripping chains pitch 19.05mm |
|
The Grip chain 1873-D is designed for vertical conveyors where the items are conveyed between two Grip links. Main application for Grip 1873-D is vertical conveying of containers. The flights for the 1873-D chain are the Snap-On type. The Grip chains have a 0.75 in. pitch side flexing roller base chain. The Grip 1873-D can run in both directions. The recommended temperature area for the Pitch:19.05mm Width:82.5mm/152.4mm/190.5mm Code: 1873SS-G4-K325 1873SS-G4-K325 Materials: POM Rubber inserts stainless steel base chains Grip chain is -40 to +80°C(-40 to +176°F). |
 |
snap on chains and flex chains.pdf
