| Structure: | Top Chain | Function: | Conveyor Chain |
|---|---|---|---|
| Standard or Nonstandard: | Standard | Material: | POM |
| Color: | brown and white | link chains: | ss304 or carbon steel |

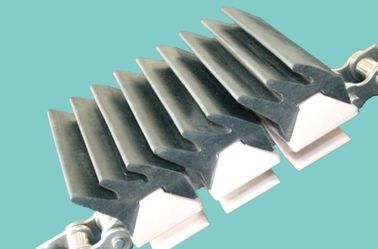

| SS1873-G4 SNAP ON BOTTLING LINE CONVEYOR GRIPPER CHAIN FOR ELEVATOR CONVEYOR SYSTEMS |
|
The Gripper chain is designed for vertical conveyors where the items are conveyed between two uni Grip links.The gripper 1873 chain supplied with moulded rubber inserts. The main application for Grip 1873-G4 is vertical conveying of cans or bottles. The flights for the 1873-G4 chain are the Snap-On type. The uni Grip chains have a 0.75 in. pitch side flexing roller base chain. The recommended temperature area for the uni Grip chain is -40 to +80°C (-40 to +176°F). Pitch: 19.05mm Width: 82.5mm /114.3mm Code: 1873SS-G4-K325 1873SS-G4-K325 Materials: POM Rubber inserts stainless steel base chains |
 |
|
|
