تفاصيل المنتج:
شروط الدفع والشحن:
|
| Structure: | snap on chains | Function: | Conveyor Chain |
|---|---|---|---|
| Standard or Nonstandard: | Standard | Material: | Plastic |
| Color: | Black | link chains: | ss304 or carbon steel |
| Plate Shape: | Rectangular | Chain Material: | Stainless Steel |
| Chain Link Size: | 1.5 inches x 1 inch | Chain Pitch: | 1 inch |
| Chain Link Shape: | Rectangular | Type: | Plate top chains |
| Condition: | 100% new | Application: | Conveyor Systems |
| Operating Temperature: | 0-80 degrees Celsius | Plate Thickness: | 0.5 inches |

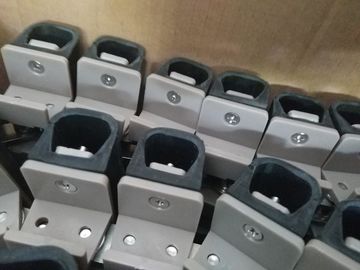

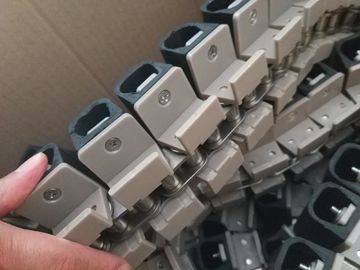

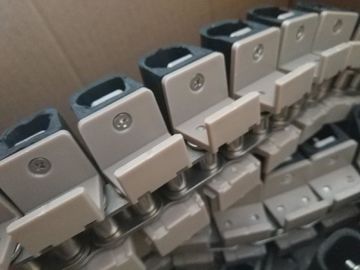

| 1873-D snap on table top gripper chains plate top conveyor chains for bottling conveypor lines |
|

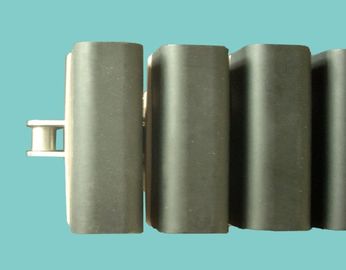

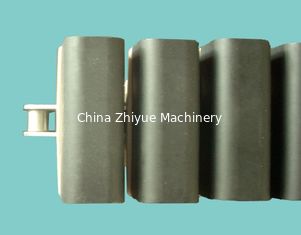

The Grip chain 1873-D is designed for vertical conveyors where the items are conveyed between two Grip links.Main application for Grip 1873-D is vertical conveying of containers. The flights for the 1873-D chain are the Snap-On type. The Grip chains have a 0.75 in. pitch side flexing roller base chain. The Grip 1873-D can run in both directions.The recommended temperature area for the Pitch: 19.05mm Width: 82.5mm /152.4mm /190.5mm Code: 1873SS-G4-K325 1873SS-G4-K450 1873SS-G4-K750 Materials: POM Rubber inserts stainless steel base chains Grip chain is -40 to +80°C (-40 to +176°F). |
 |
|
|
snap on chains and flex chains.pdf
